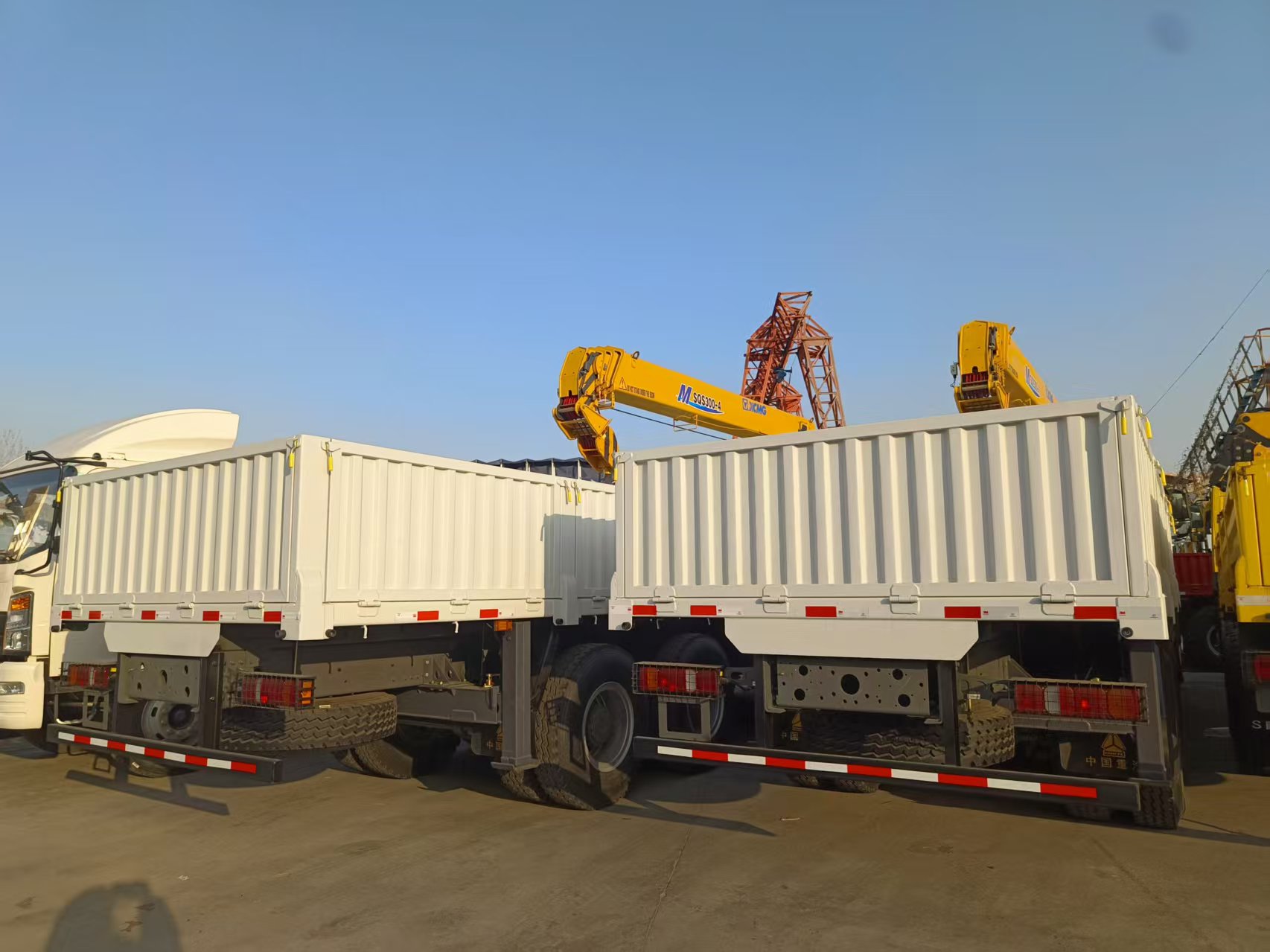

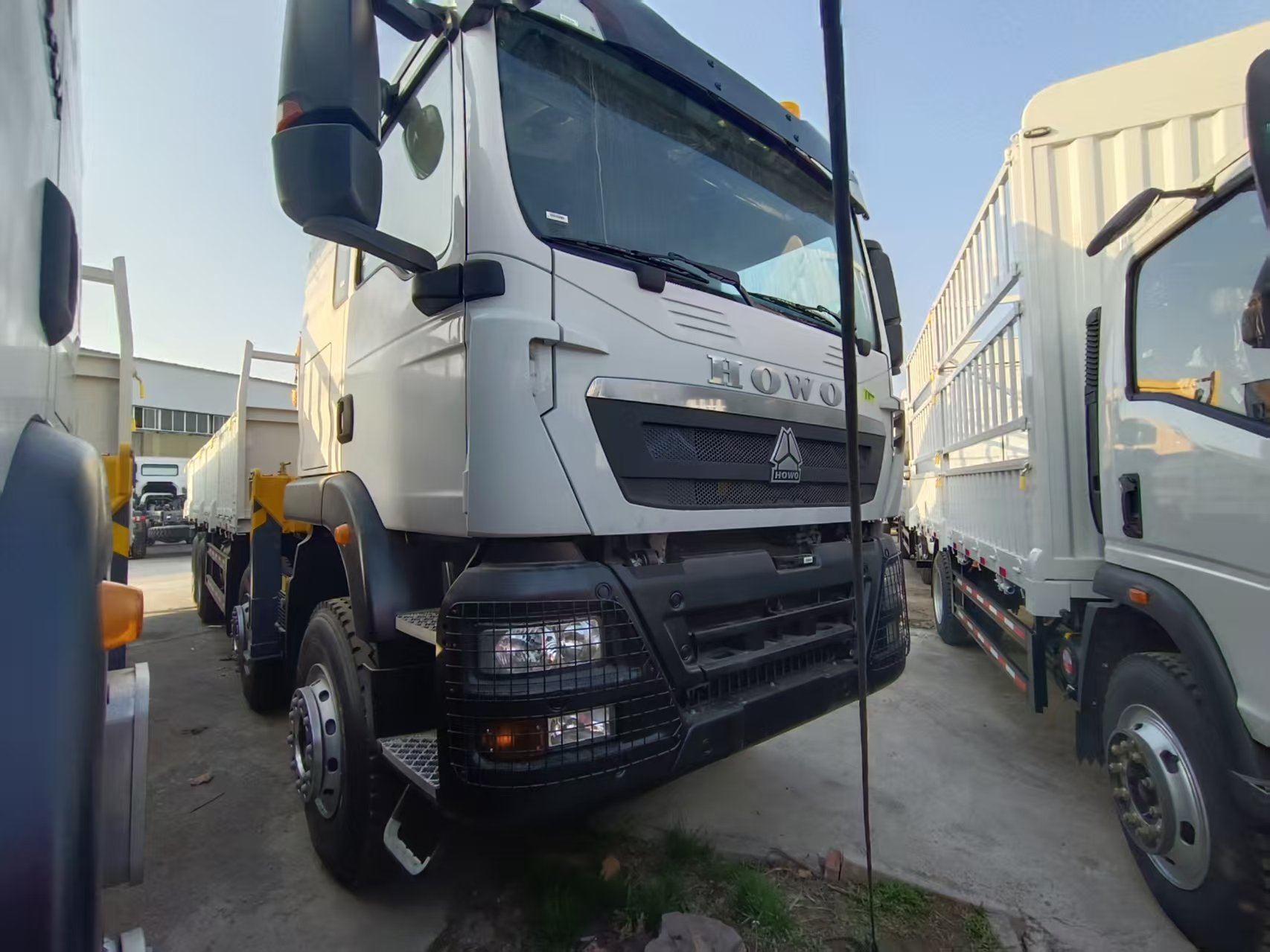

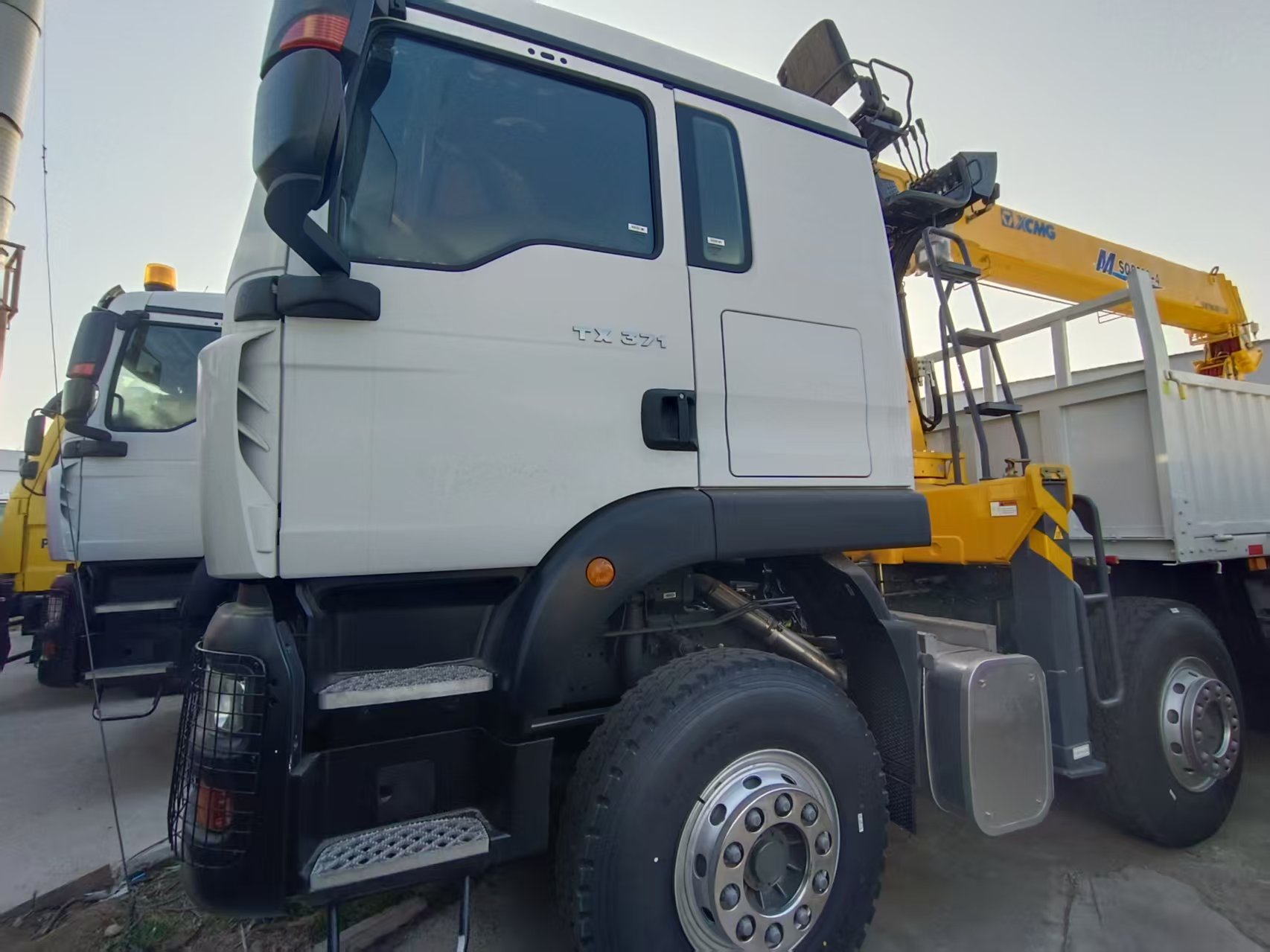

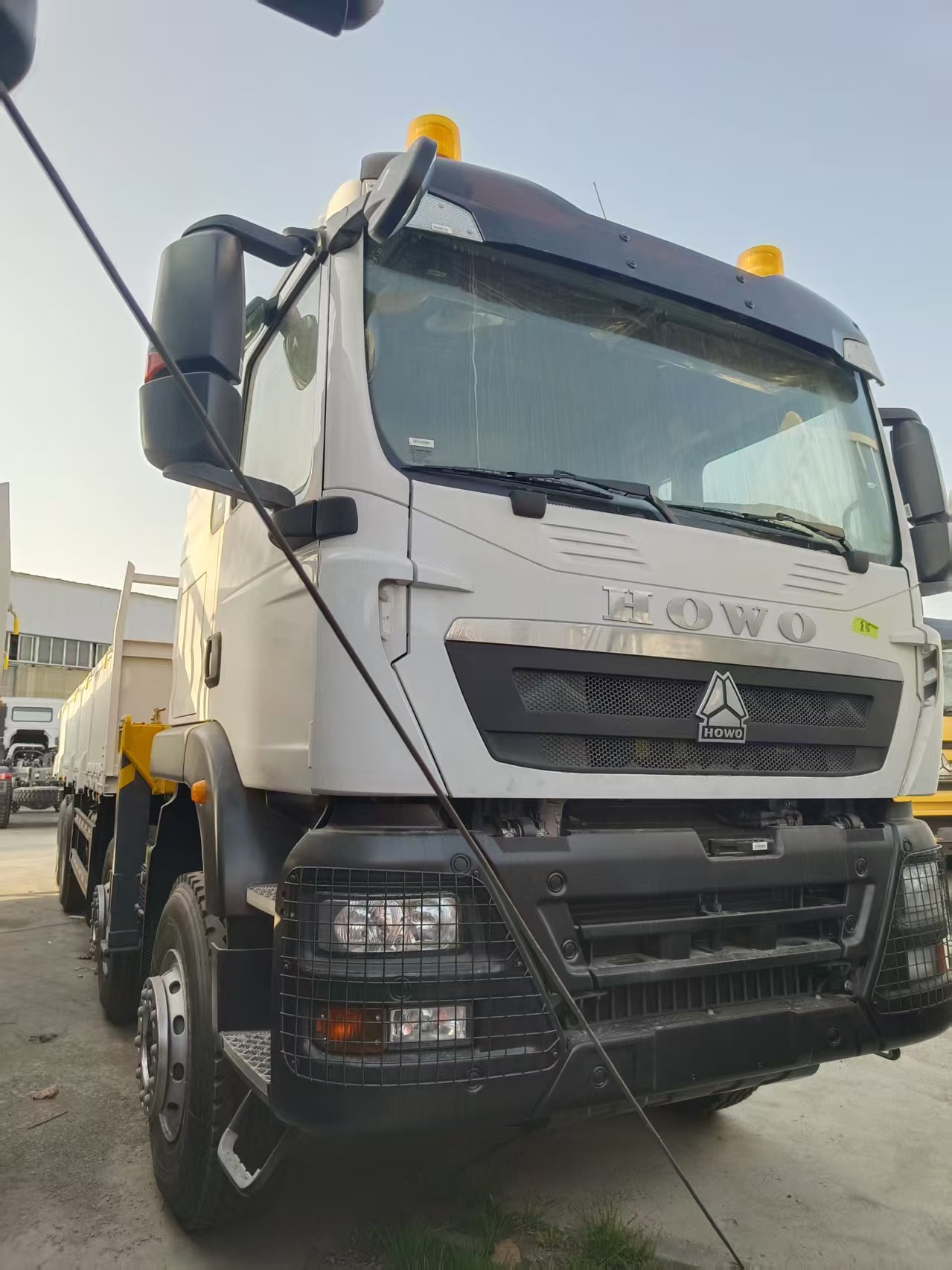

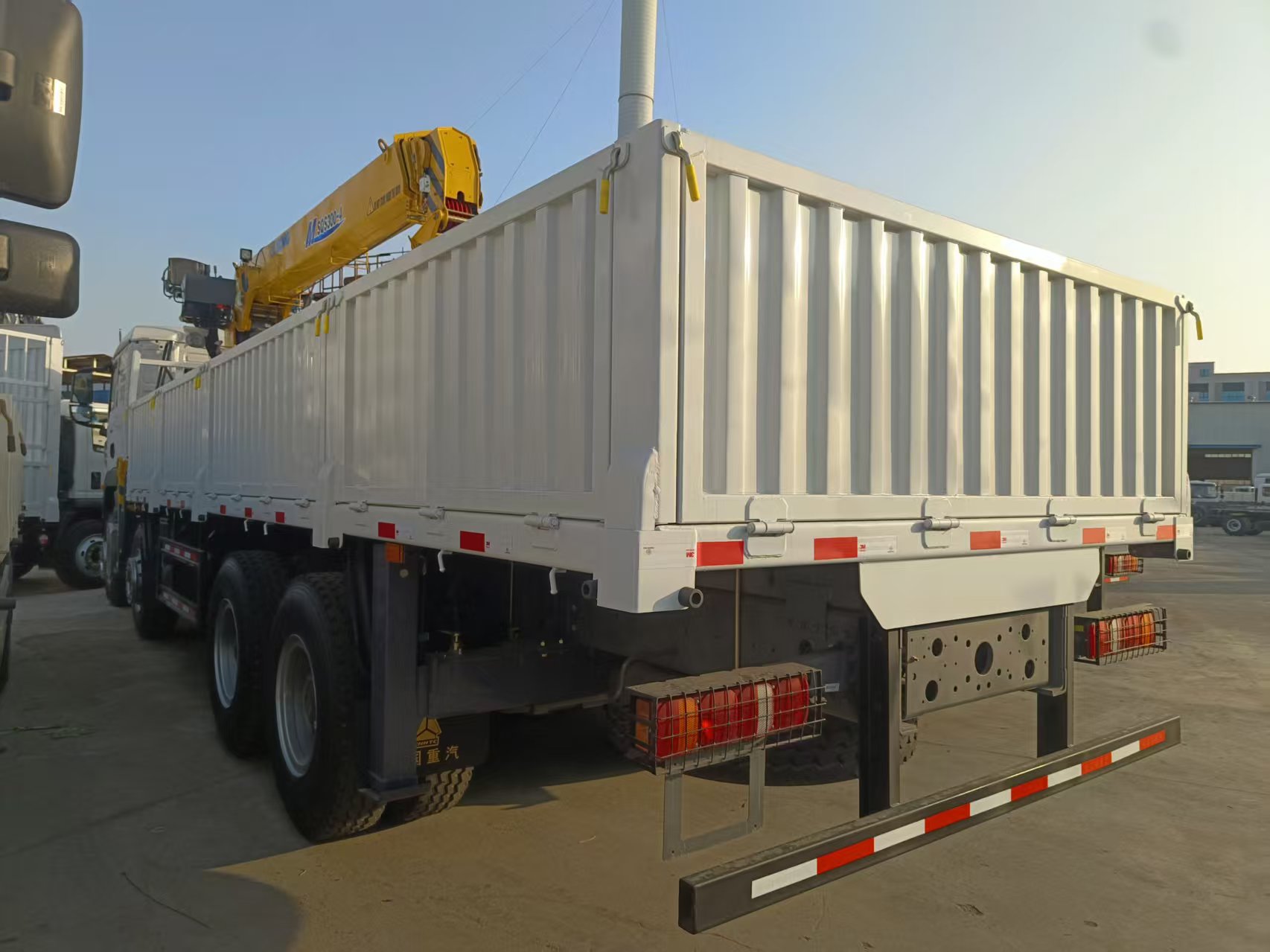

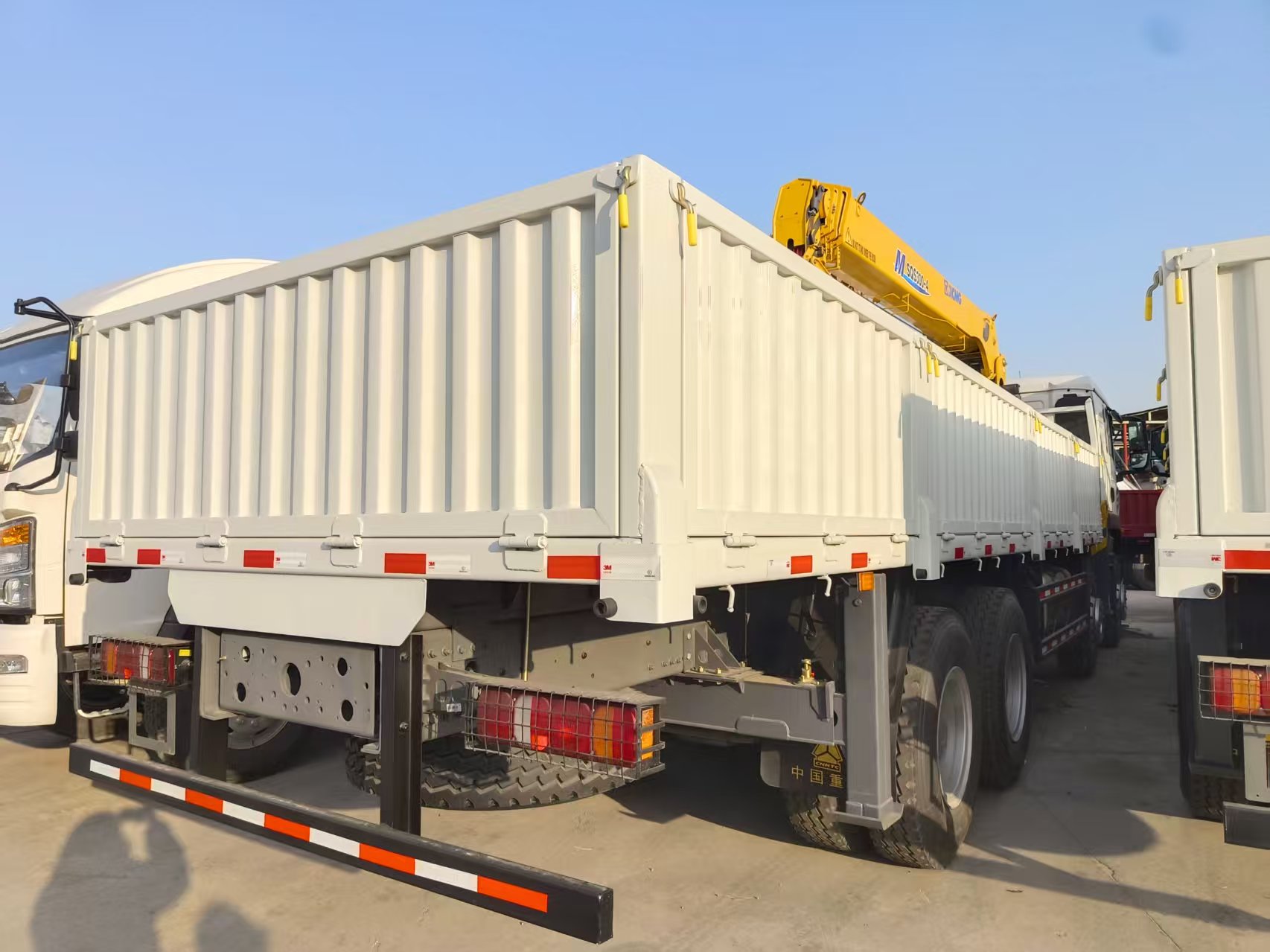

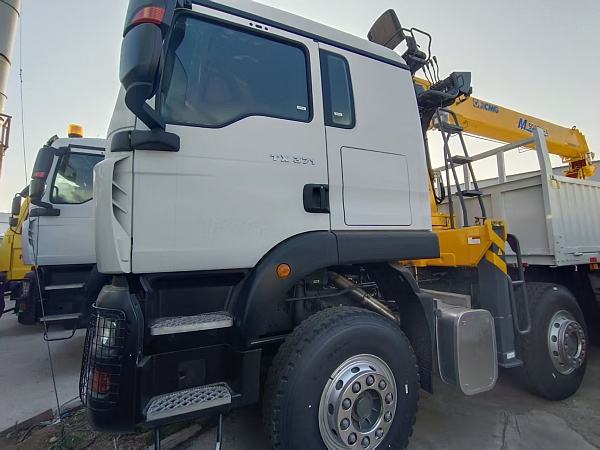

HOWO TX Crane Truck 8×4
HOWO TX 8*4 Crane Truck – an integrated lifting and transportation solution, offering multiple uses in one vehicle, flexibility, and efficiency, ensuring the safety of your loading, unloading, and transfer operations. The cranes are manufactured by XCMG, featuring lightweight construction, high lifting capacity, and an optimized boom cross-section for high strength and rigidity.
Product Introduction

HOWO TX 8*4 Crane Truck – an integrated lifting and transportation solution, offering multiple uses in one vehicle, flexibility, and efficiency, ensuring the safety of your loading, unloading, and transfer operations. The cranes are manufactured by XCMG, featuring lightweight construction, high lifting capacity, and an optimized boom cross-section for high strength and rigidity.

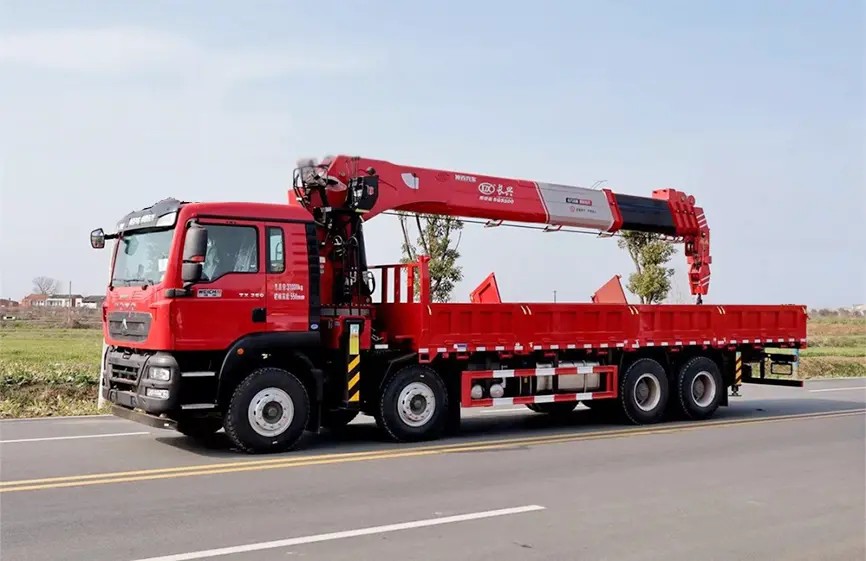

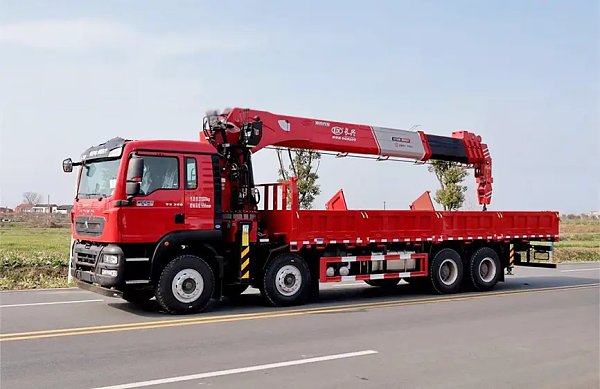

HOWO TX 8×4 Crane Truck (1)


Depending on operational needs, the truck can be equipped with various options to enhance performance and safety:

Front and Rear Outriggers: In addition to the standard center outrigger, front and rear outriggers are optional, increasing operational stability and effectively protecting the tires and frame;

Aerial Work Seat: An optional four-way aerial work seat is available, providing a wider field of vision and safer, more convenient operation;

Functional Auxiliary Equipment: Optional auxiliary equipment such as log grapples, scrap metal grapples, and suspended baskets can be added to expand the scope of operations and achieve multi-purpose functionality.


Configuration sheet


Model:  ZZ1317N466GB1

CHASSIS SPECS

Curb weight

17000kgs

Total weight

31000kgs

Drive style

8×4

Engine:

WD615.47, 371HP, Euro Ⅱ

Transmission:

HW19710, 10F&2R

Cabin:

TX-F, single berth with A/C

Color:

White

Wheelbase:

4600+1350mm

Tire:

12.00R20

Front axle:

VGD95

Rear axle:

MCX16ZG

Capacity of oil tank:

400L

Others

Double Frame(8+8/300),Oil bath filter,Reinforced multi-leaf springs (11/11/12)

CARRIAGE BODY SPECS

Crane:

XCMG cranes, 12-20 tons, straight arm/folding arm, optional aerial work platform seat, front and rear outriggers.

Package

Wax

There are options for engine,tire,wheelbase,capacity,etc.Please contact us for suitable configurations.


Product Details
Our Advantages

We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.

Shipping

We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.



Delivery time:20-40 working days after payment receipt confirmed (based on actual quantity).

Packing: Standard export packing, orcustomized packing as your request.

Professional goods shipping forwarder

shipping
After-sales Service

1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
