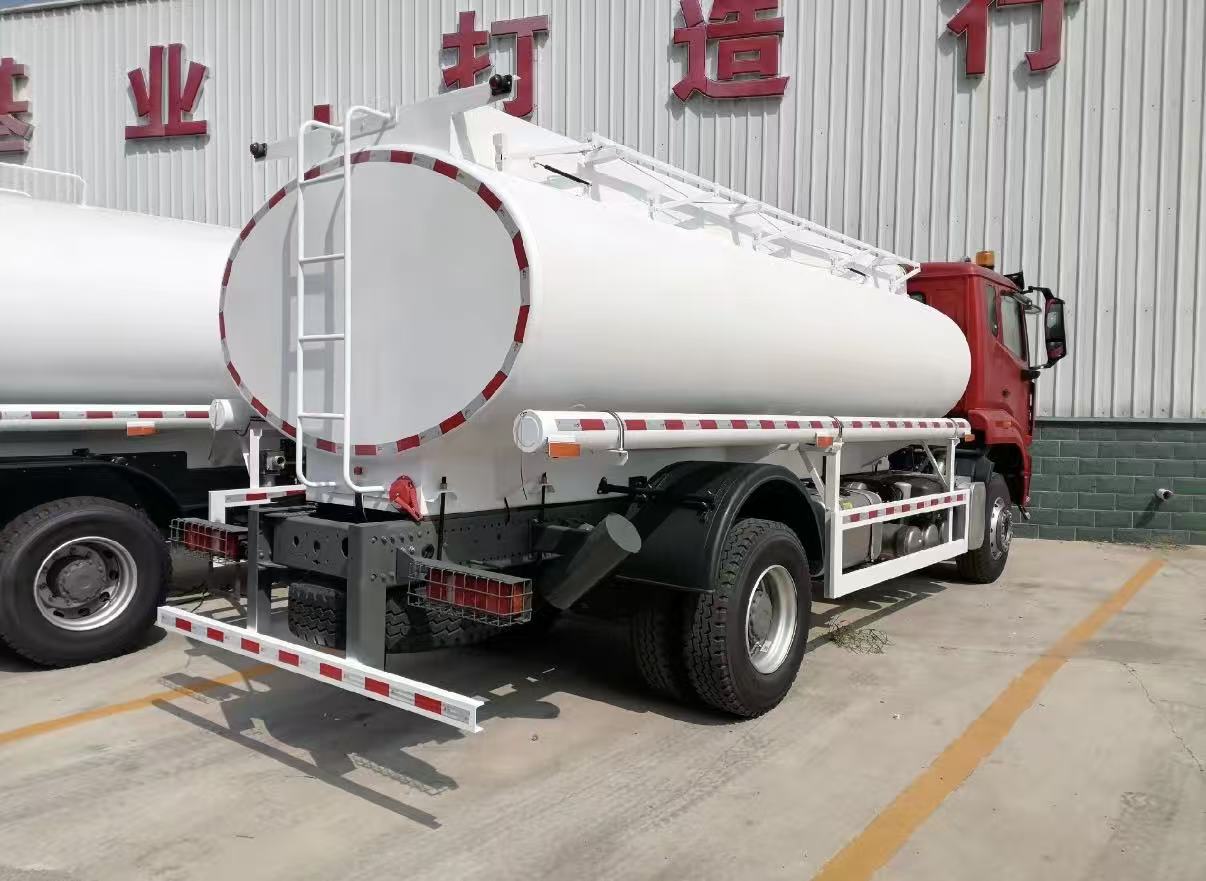

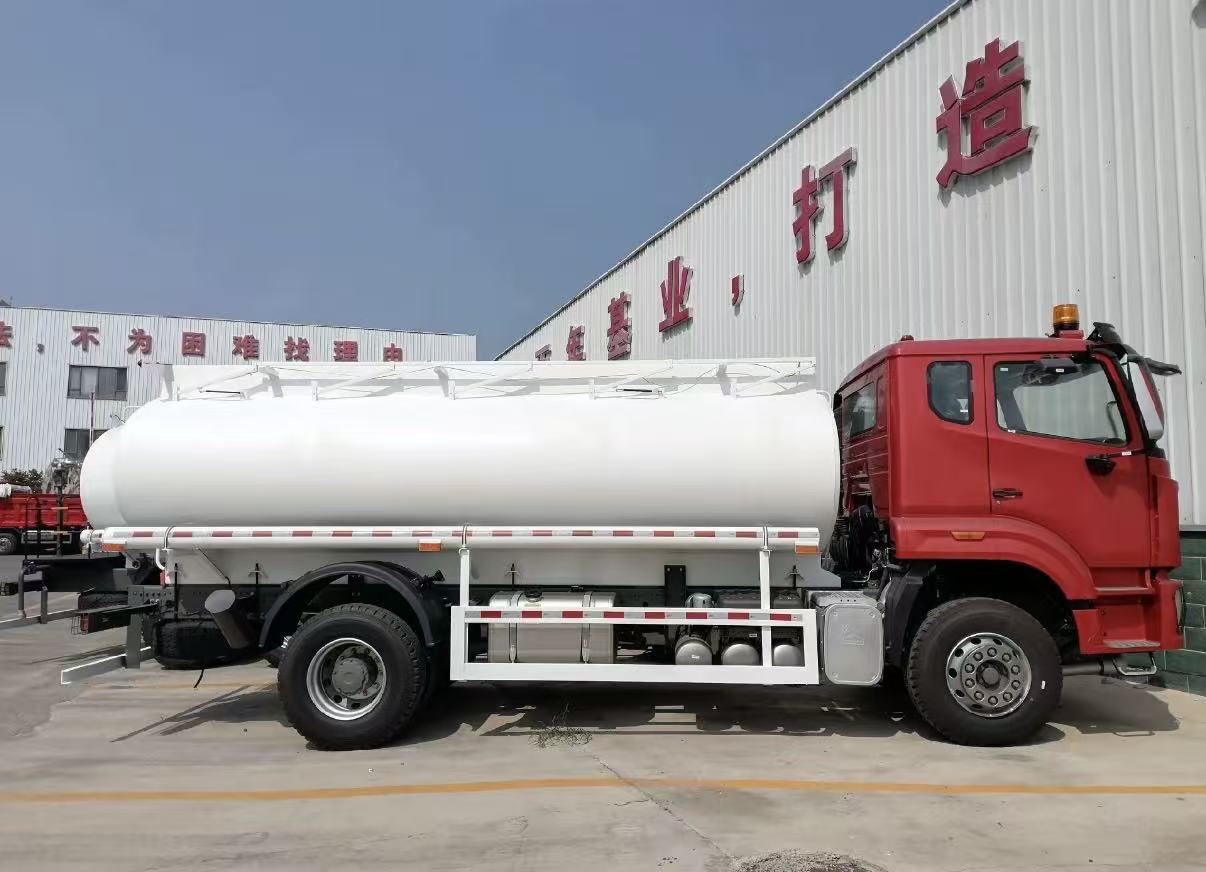

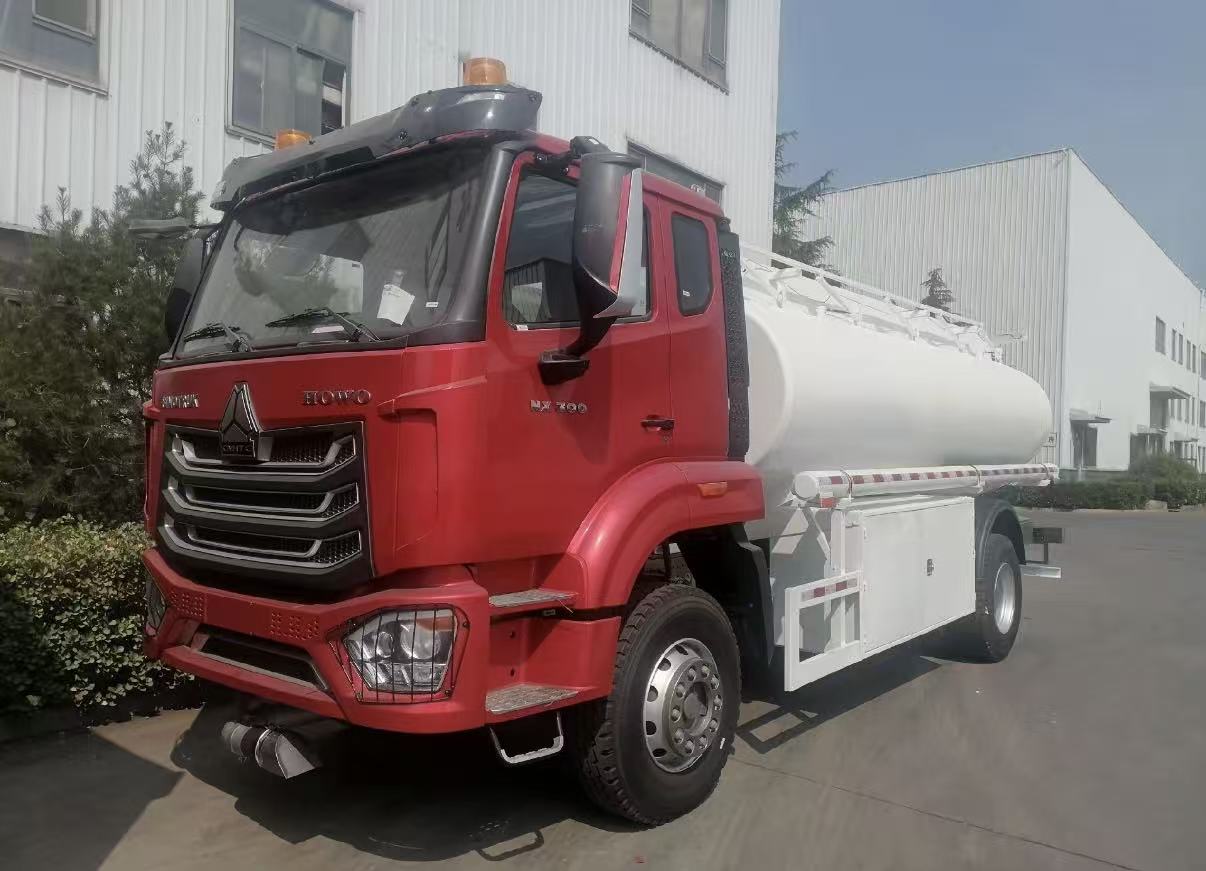

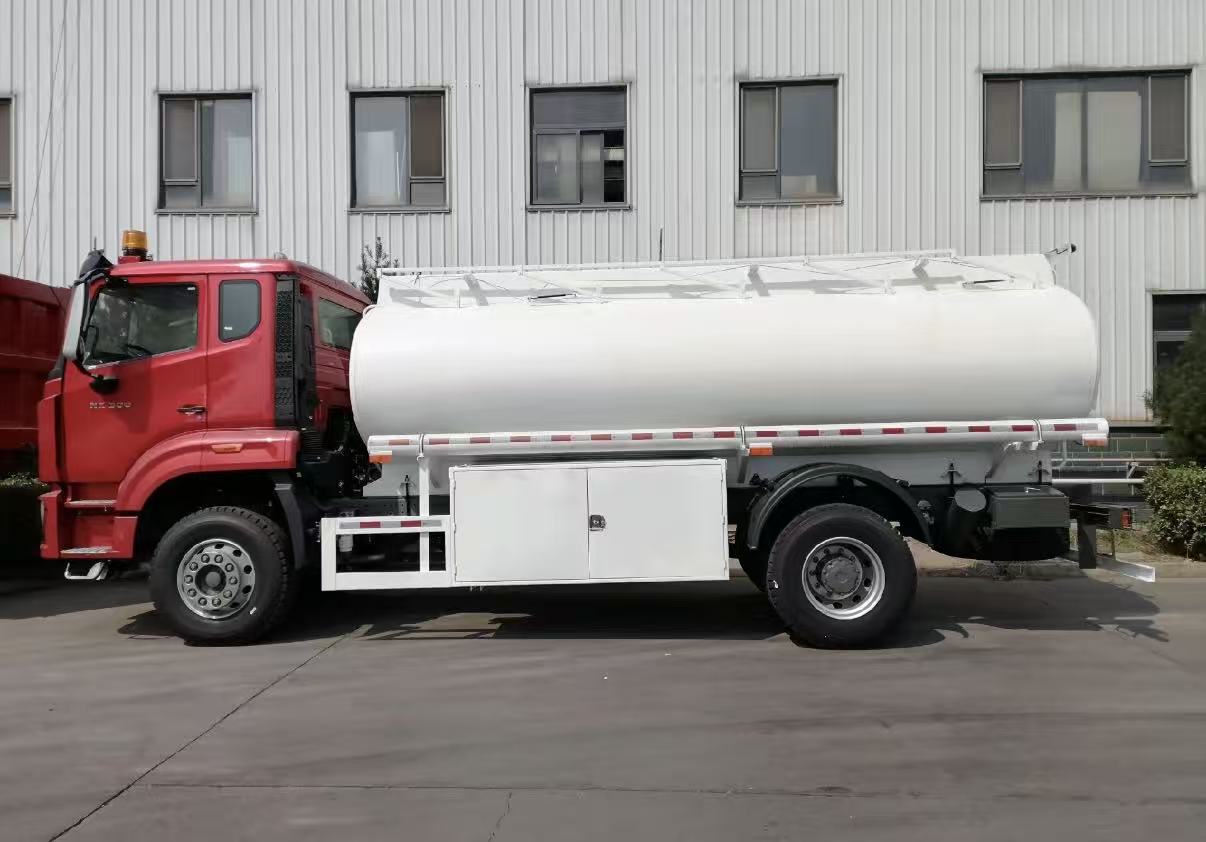

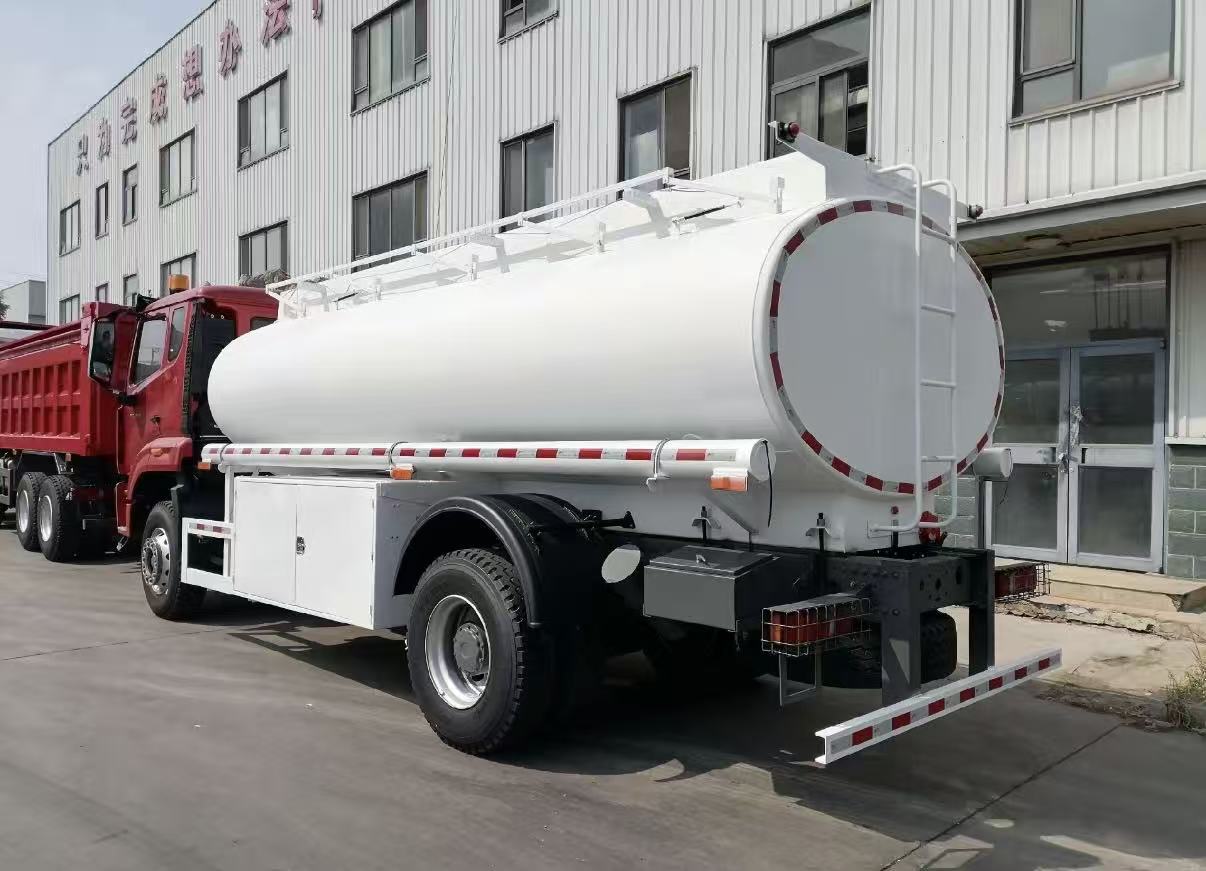

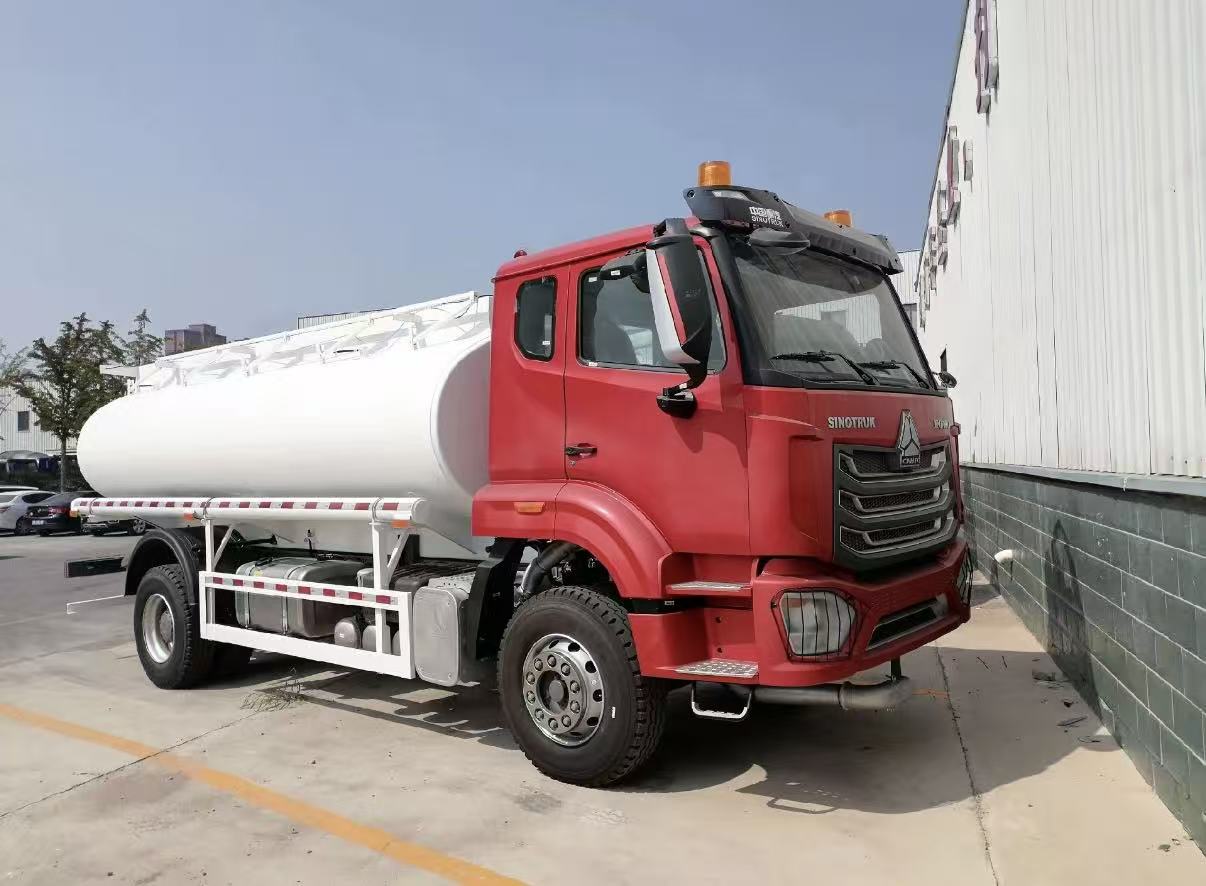

HOWO NX 4×2 Fuel tank truck
HOWO NX 4×2 Fuel tank truck is engineered exclusively for short-haul refined oil distribution and intra-city transfers, striking the perfect balance between agility and cost-effectiveness.
Product Introduction

Navigating the urban landscape, every precise delivery is a tribute to efficiency.


HOWO NX 4×2 Fuel tank truck is engineered exclusively for short-haul refined oil distribution and intra-city transfers, striking the perfect balance between agility and cost-effectiveness. Powered by a MAN-technology high-efficiency diesel engine mated to a Fast manual transmission, it delivers smooth power output and exceptional fuel economy, effortlessly handling urban congestion and frequent stop-starts.


The vehicle features a lightweight, high-strength aluminum alloy or carbon steel tank body, fully compliant with the latest regulations to maximize payload efficiency. Equipped with multiple internal anti-wave baffles, subsea valves, European-standard tank openings, vapor recovery systems, and electrostatic grounding alarms, it eliminates safety risks at the source.


The cab boasts the NX series' all-new interior, including a multifunction steering wheel, air conditioning, and ergonomic seats, significantly reducing driver fatigue. Whether restocking gas stations, supplying fuel to enterprises, or conducting emergency oil transfers, it is the most reliable partner that understands the urban rhythm. Excellence in every detail, the HOWO NX 4×2 Oil Tanker keeps the lifeblood of urban energy flowing with its agile presence.


Configuration sheet


Model:ZZ1257V464JB1

CHASSIS SPECS

Drive style

Left hand drive

Engine:

WD615.47, 371HP, with EURO 2 engine emission, 9.726L, 6 cylinders In-line

Transmission:

HW19710+HW70flange PTO;(10 forward 2 reverse)

Cabin:

Howo H77L Cab, with A/C

Color:

White

Wheelbase:

4600mm

Tire:

11.00R20/12.00R20/315/80R22.5 tyres(6+1)

Front axle:

9.5T(drum)

Rear axle:

16T(drum)

Capacity of oil tank:

400L

Others

Power steer,Exhaust brake and spring brake

CARRIAGE BODY SPECS

Tank volume:

10-15 cubic meters

Tank thickness:

5mm

End cap thickness:

5mm

Baffle thickness:

3mm

Others:

Equipped with a gear oil pump, pressure relief system, gravity flow system, fireproof cap, fire extinguisher, bottom valve, and two drain hoses.

Package

Wax


Product Details
Our Advantages

We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.

Shipping

We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.



Delivery time:20-40 working days after payment receipt confirmed (based on actual quantity).

Packing: Standard export packing, orcustomized packing as your request.

Professional goods shipping forwarder

shipping
After-sales Service

1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
