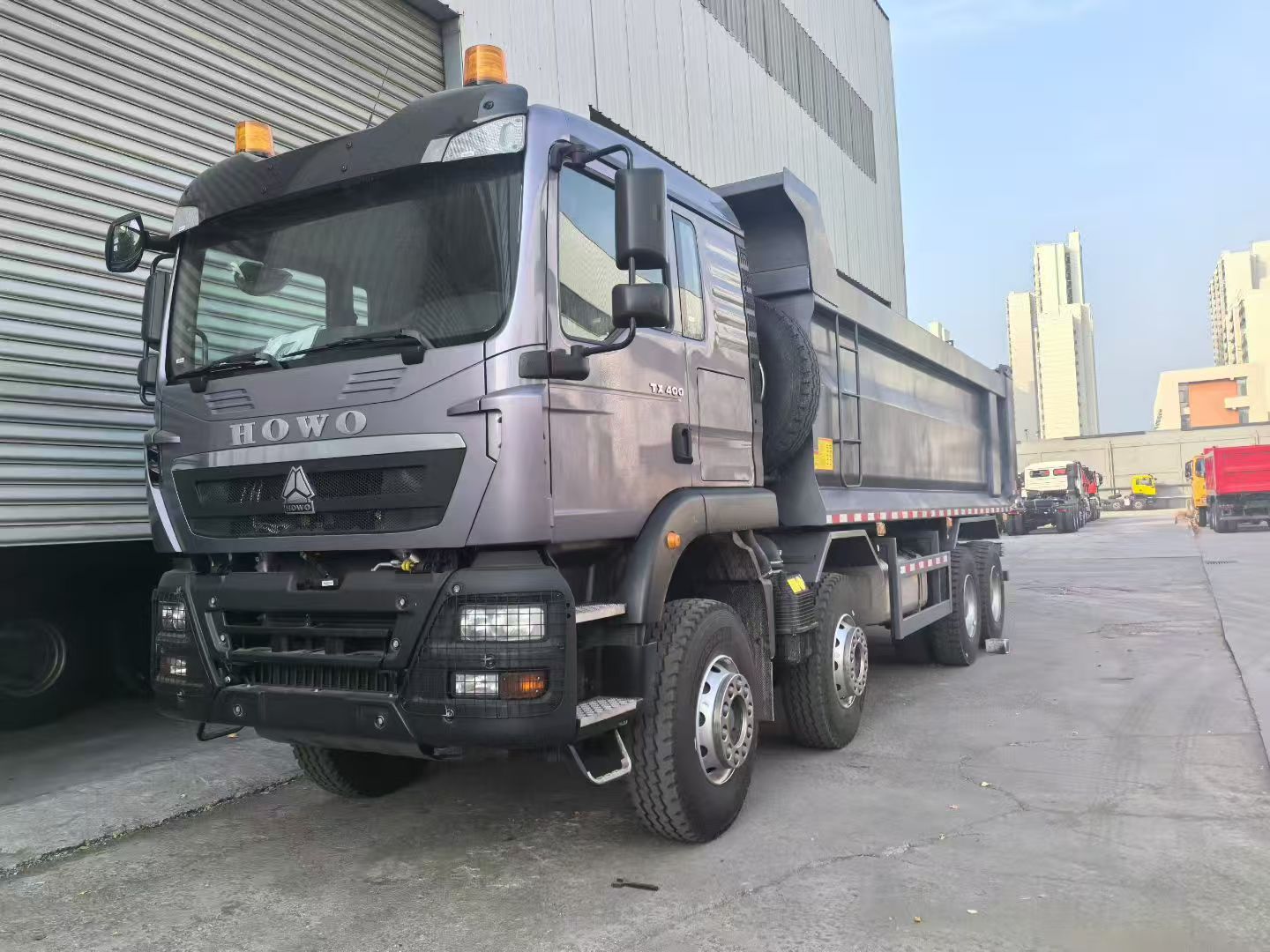

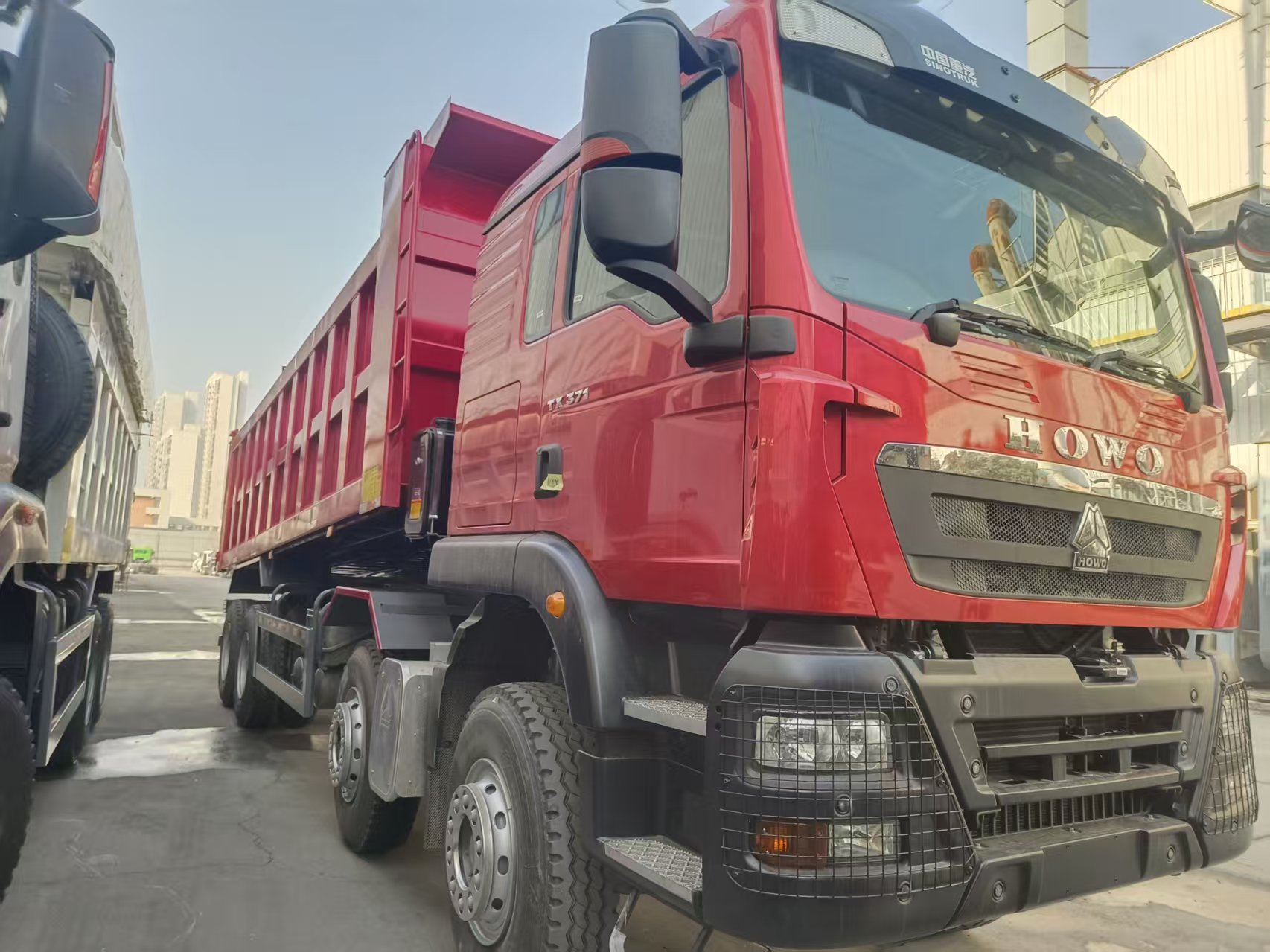

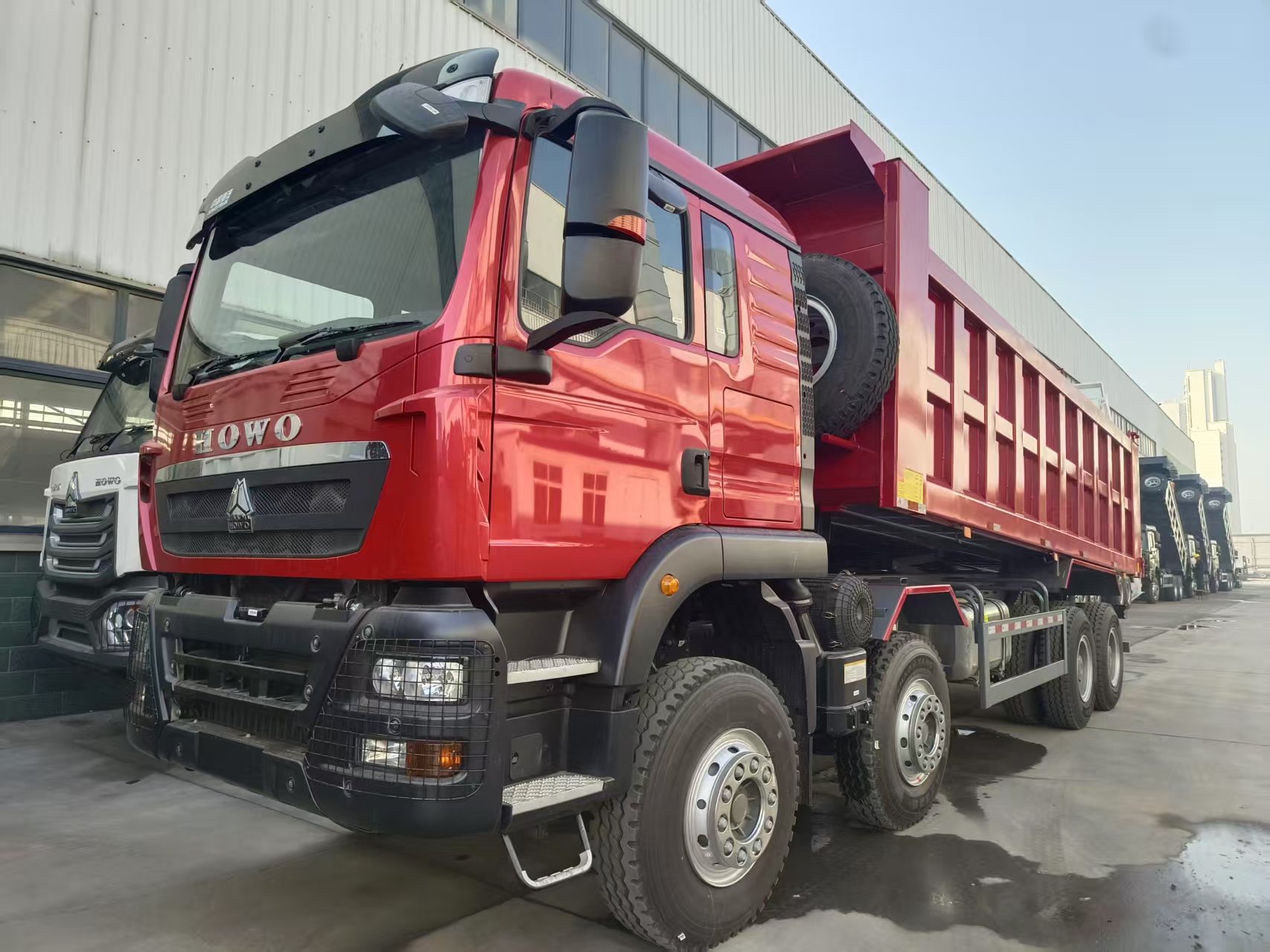

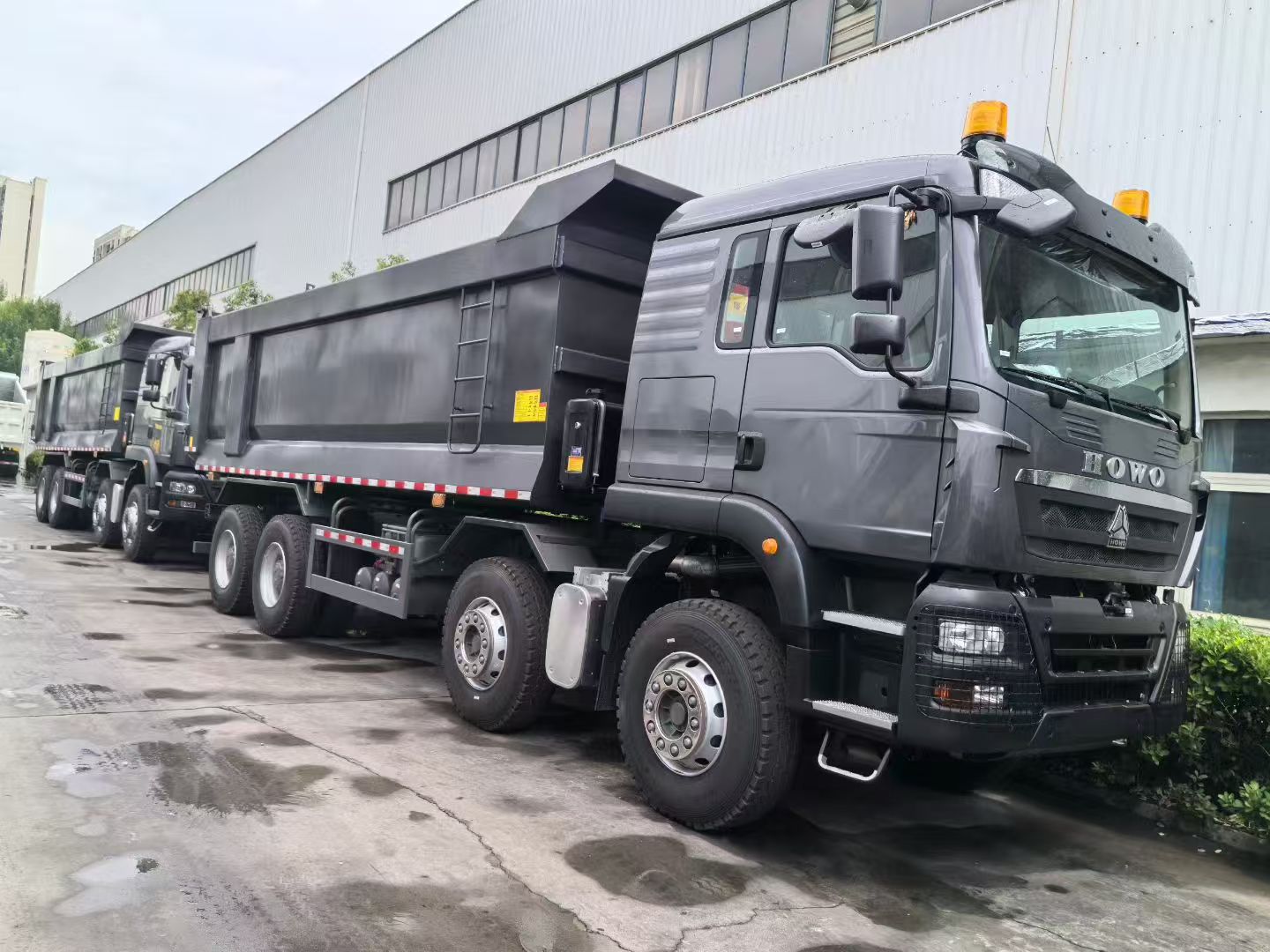

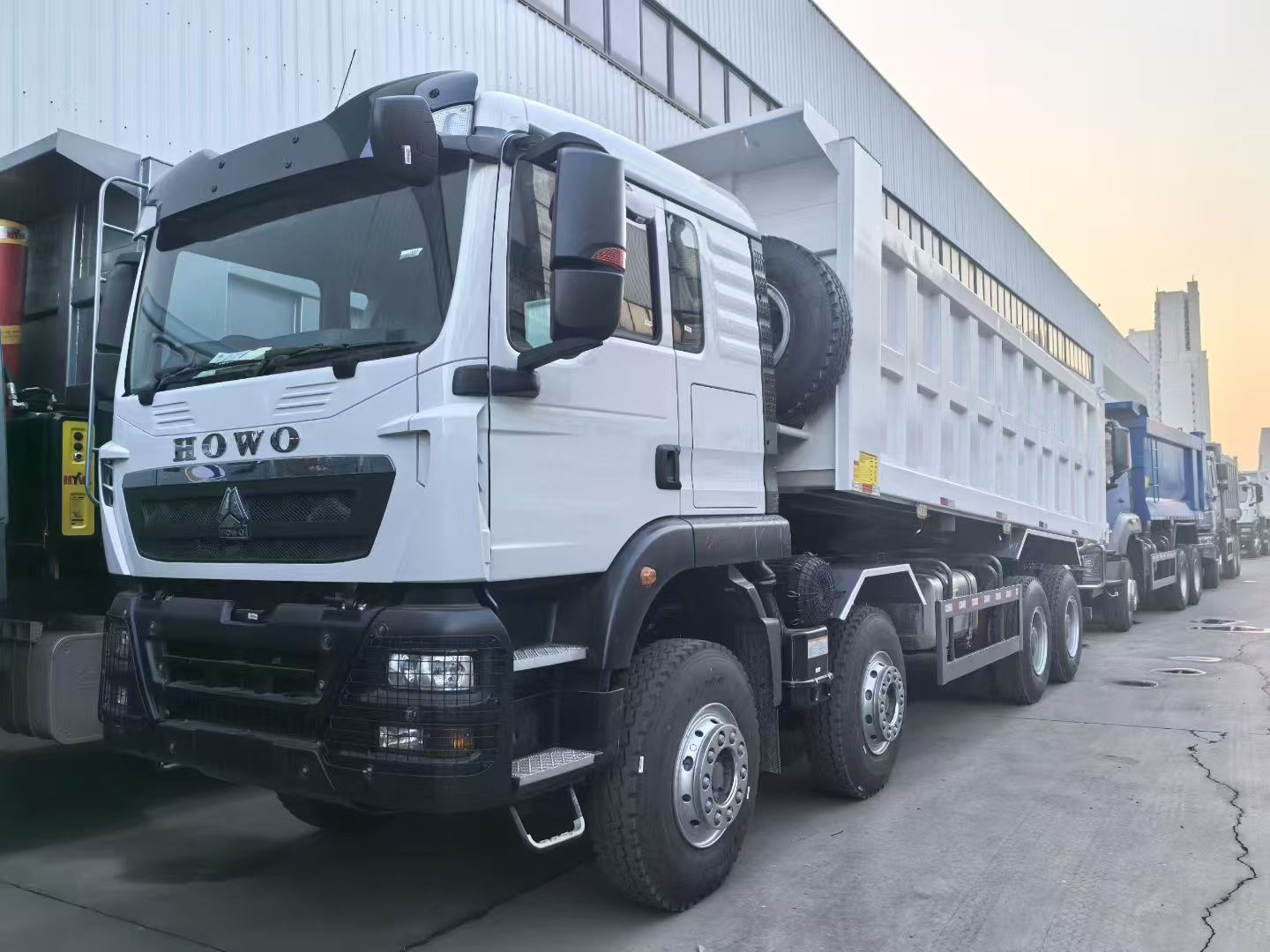

HOWO TX 8×4 Dump Truck
The HOWO TX chassis is constructed from high-strength steel, providing exceptional resistance to compression, torsion, and impact. The frame is engineered to handle both the heavy loads of cargo transport and the intense vibrations encountered on challenging roads, providing the strength necessary for vehicle stability and long-lasting durability.
Product Introduction

The HOWO TX is a versatile player in the heavy truck Field, All-Around Excellence Achieves High Efficiency.

The HOWO TX chassis is constructed from high-strength steel, providing exceptional resistance to compression, torsion, and impact. The frame is engineered to handle both the heavy loads of cargo transport and the intense vibrations encountered on challenging roads, providing the strength necessary for vehicle stability and long-lasting durability.


HOWO TX 8×4 Dump Truck (3)


The HOWO TX 8*4 dump truck can be equipped with U-shaped or rectangular cargo boxes, with capacity ranging from 18 to 28 CBM, to meet various material transportation needs. The cargo body can be manufactured using Q235 carbon steel/Q355 manganese or T700 high-strength, NM450 high-wear-resistant special steel, resulting in higher strength and durability. The truck features a low center of gravity design, ensuring greater stability during braking at the same speed, allowing it to easily handle various operating scenarios in all weather conditions. In line with urban environmental protection transportation concepts, a tarpaulin or a legally compliant sealed metal top cover is available as an option.


Configuration sheet


Model:   ZZ3317N356GB1

CHASSIS SPECS

Curb weight

17000kgs

Total weight

60000kgs

Drive style

8×4

Engine:

WD615.47, 371HP, Euro Ⅱ

Transmission:

HW19710, 10F&2R

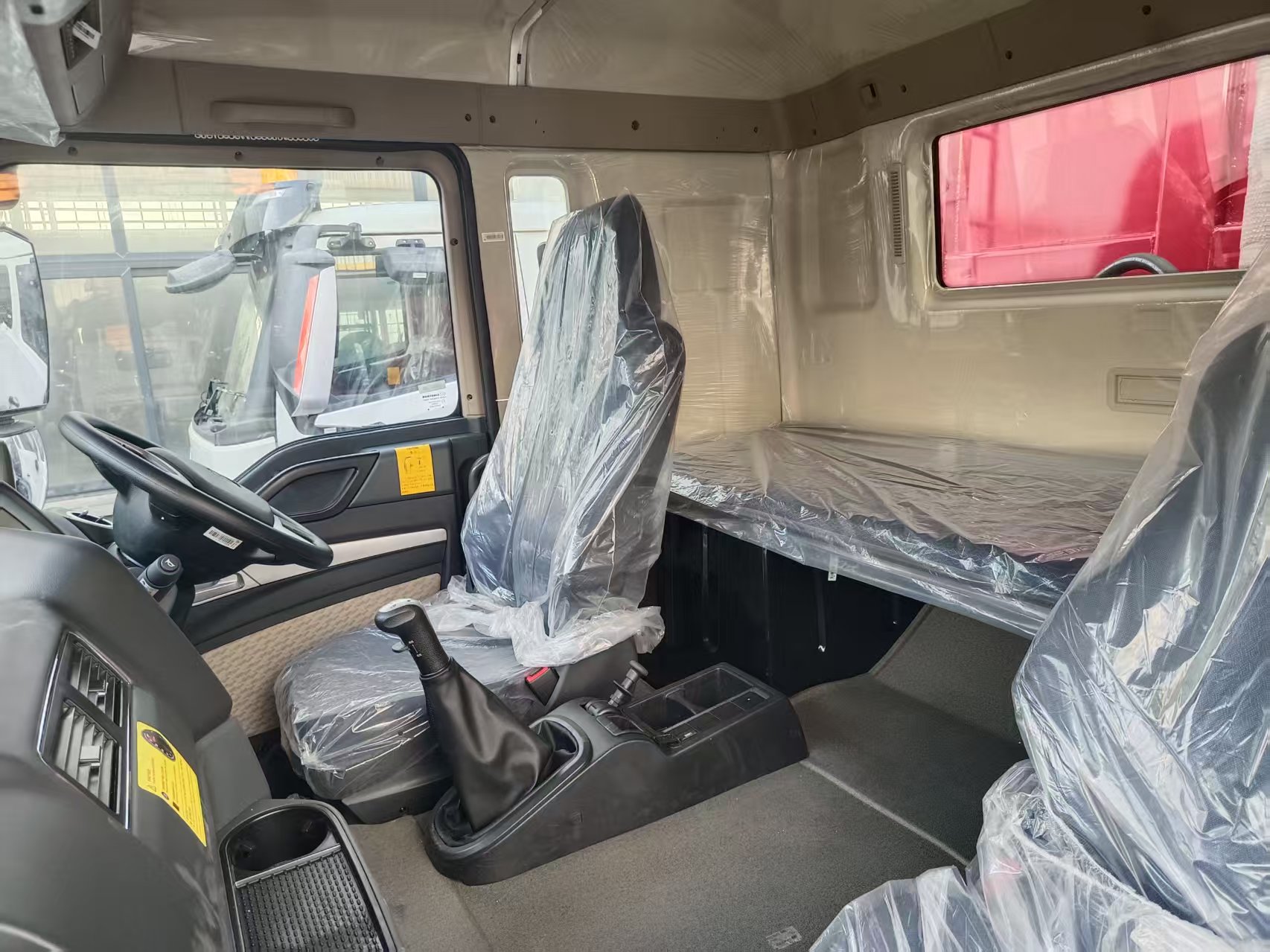

Cabin:

TX-F, single berth with A/C

Color:

White

Wheelbase:

3500mm

Tire:

12.00R20

Front axle:

VGD95

Rear axle:

MCX16ZG

Capacity of oil tank:

300L

Others

Oil bath filter, TX PRO(new interior)

CARRIAGE BODY SPECS

Size and Specs:

7300*2300*1500mm, Floor 8mm side 6mm,Q355,Front hydraulic lifting

Package

Wax

There are options for engine,tire,wheelbase,cargo,etc.Please contact us for suitable configurations.


Product Details
Our Advantages

We have been special truck manufacturer for more than 32 years. We has professional German Kogel technology, combined with Sinotruk, to create first-class special vehicles, provide trucks owners with the best quality, best price, and the most timely after-sale professional services.

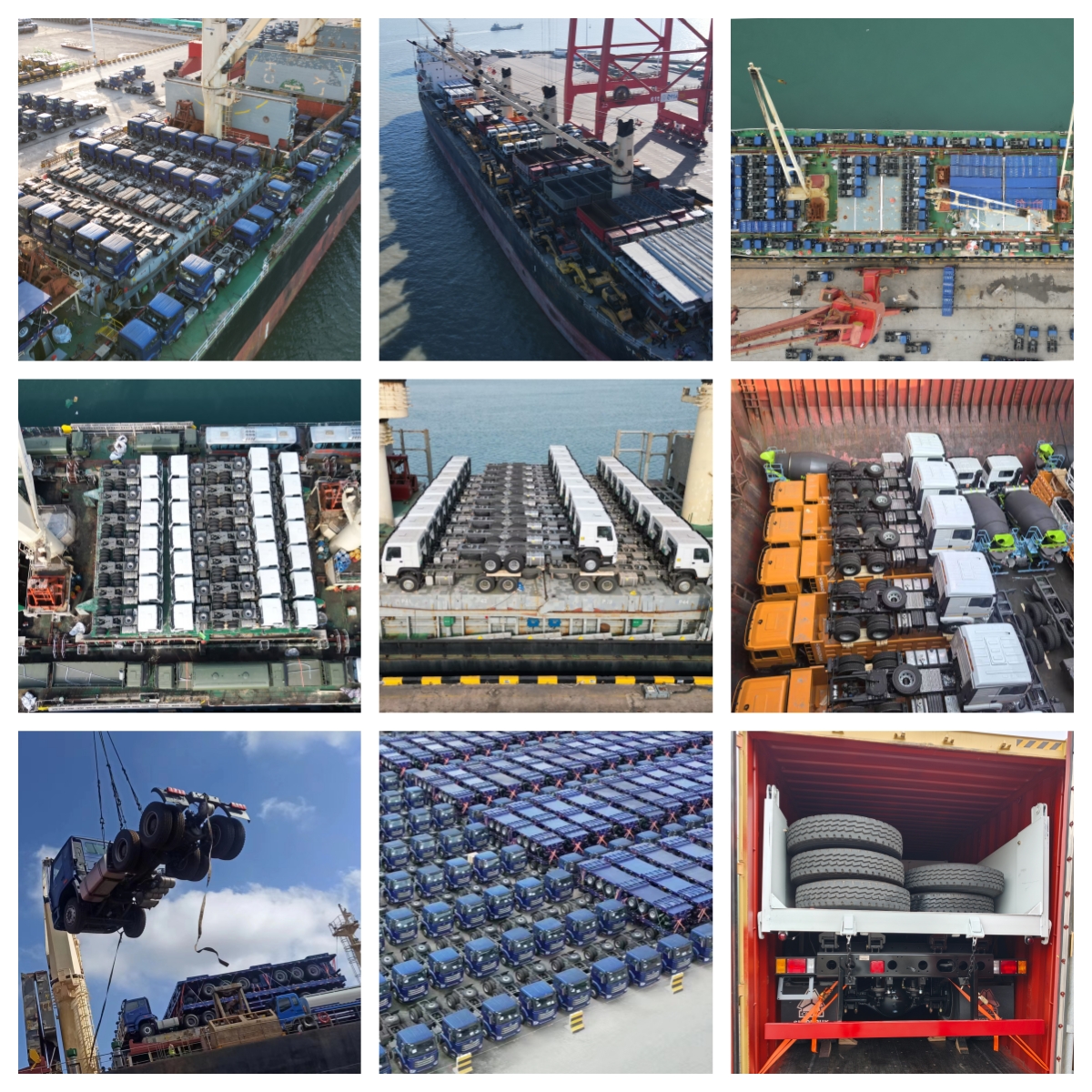

Shipping

We usually adopt shipping by bulk cargo, flat rack, and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.



Delivery time:20-40 working days after payment receipt confirmed (based on actual quantity).

Packing: Standard export packing, orcustomized packing as your request.

Professional goods shipping forwarder

shipping
After-sales Service

1.12months or 100,000km for main parts (engine, axle, body and beam, etc).
2.Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports
4.Engineer available service oversea.
